Brick Arch Paint Removal – Case Study

Careful Restoration of Arched Brickwork

Painted brick arches are one of the most commonly mishandled features on older properties. Their curved faces, exposed mortar joints, and often softer bricks mean that aggressive paint removal methods can quickly cause irreversible damage.

This project involved the careful removal of paint from a brick arch using a controlled, step-by-step process designed to protect the brickwork and surrounding surfaces while restoring its original appearance. Rather than relying on high pressure or abrasive techniques, the focus was on preparation, protection, and gentle brick paint removal — an approach particularly well suited to arched and decorative brickwork.

The images below document each stage of the brick arch paint removal process, from the initial condition and protection through to paint softening, steam cleaning, and the final result, where the brick’s natural colour and detail were successfully revealed without surface damage.

Protecting Surrounding Surfaces Before Brick Arch Paint Removal

Brick arches require a far more cautious approach than flat brickwork. The curved faces, exposed mortar joints, and varying brick profiles mean that any paint removal process must be carefully controlled from the outset.

Before starting the brick arch paint removal, all surrounding areas were fully protected to prevent moisture ingress and to ensure the process remained focused solely on the arched brickwork. Adjacent surfaces, door furniture, and vulnerable details were masked and shielded to avoid accidental marking during treatment.

This stage is particularly important when removing paint from arched brickwork. Paint is often thicker around curved faces and mortar joints, and unlike flat brick walls, it cannot be easily controlled or directed downward during removal. On straight masonry, paint residue and moisture can be guided onto floor protection, but this becomes far more difficult on circular brick arches where runoff behaves unpredictably.

Without proper preparation and protection, paint residue can spread unevenly across the surrounding surfaces, increasing the risk of staining or patchy results. By allowing for this at the preparation stage, the brick arch paint removal process can be carried out in a controlled and consistent manner, ensuring the paint is removed evenly while keeping adjacent areas fully protected.

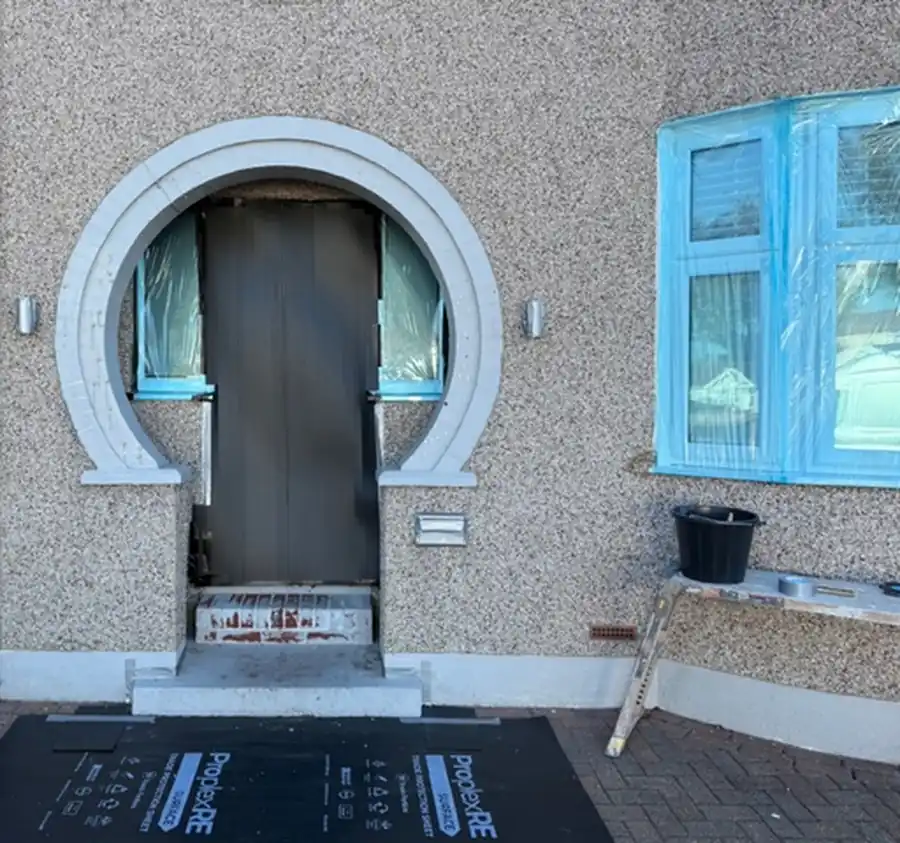

Surrounding surfaces professionally protected to eliminate any risk of damage during paint removal

Applying Paint Softener for Brick Arch Paint Removal

Removing paint from brick arches requires a controlled and methodical approach. On curved brickwork, paint is often applied in multiple layers and can bond unevenly to the brick faces and mortar joints over time.

To allow the paint to be removed safely, a suitable paint softener was applied to the brick arch and left to dwell for a controlled period. This stage plays an important role in brick arch paint removal, as it helps to loosen the paint without forcing moisture into the brickwork or damaging the surface.

Arched brickwork tends to hold thicker paint deposits around curves, edges, and mortar joints. Softening the paint first allows it to be lifted more delicately during the steam cleaning stage, helping to prevent patchiness, surface scarring, and loss of surface detail.

By incorporating paint softening into the process, the subsequent steam cleaning can be carried out with greater control, resulting in a more consistent finish and helping to preserve the original character of the brick arch.

test test

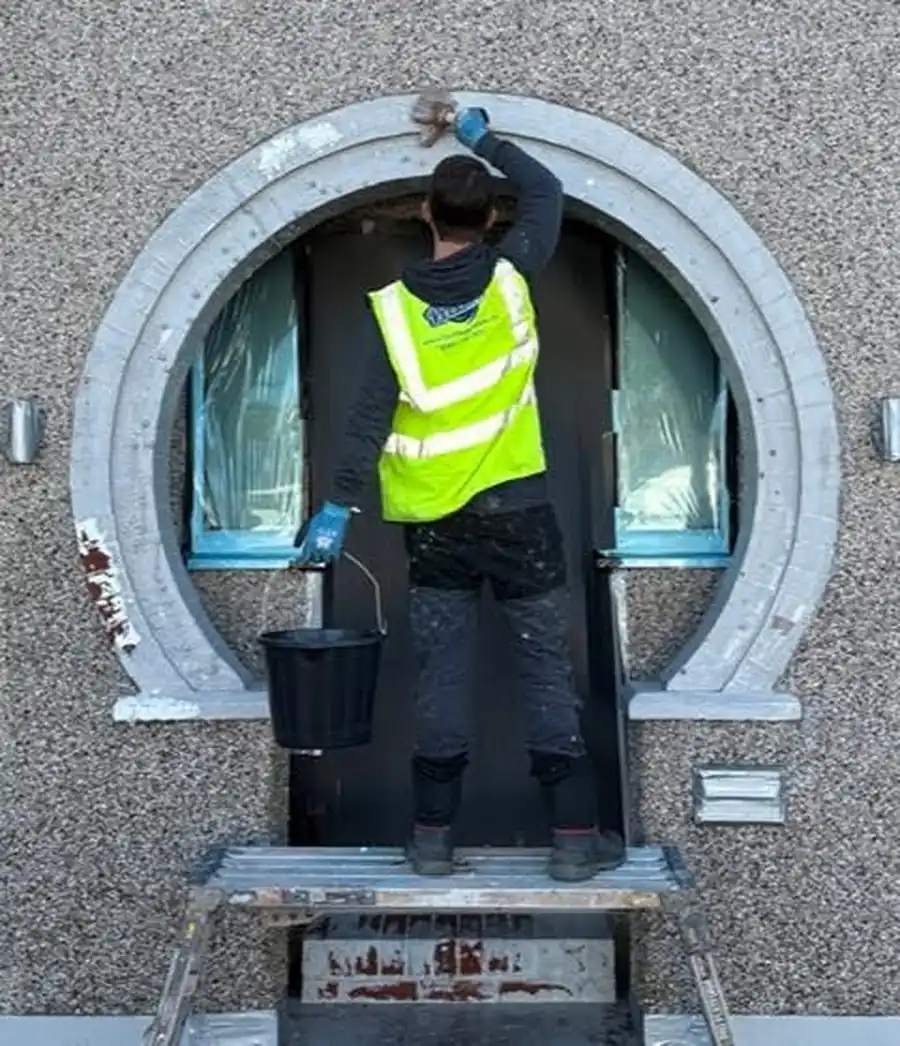

Paint softener being applied to a brick arch prior to steam cleaning

Steam Removing Paint from the Brick Arch After Paint Softening

Once the paint had been sufficiently softened, the brick arch was carefully steam cleaned to lift the remaining coatings from the brick faces and mortar joints. Using controlled, low-pressure DOFF steam cleaning allows the paint to be removed gradually, without damaging the surface of the brickwork or eroding the mortar.

On arched brickwork, control is especially important. The curved profile of the arch means that heat, moisture, and loosened paint behave differently than on flat walls. By working methodically across the arch and adjusting the approach as needed, the paint could be removed evenly while maintaining consistent results across curves, edges, and joints.

Steam cleaning following paint softening also helps to rinse away residue as the paint is lifted, reducing the risk of staining or redepositing paint onto surrounding areas. This combination of softening and steam cleaning provides a highly effective method for brick arch paint removal, particularly on older or decorative brickwork where preserving surface detail is essential.

By the end of this stage, the original brick colour and texture of the arch were clearly visible, with the brickwork left clean, intact, and ready to weather naturally again.

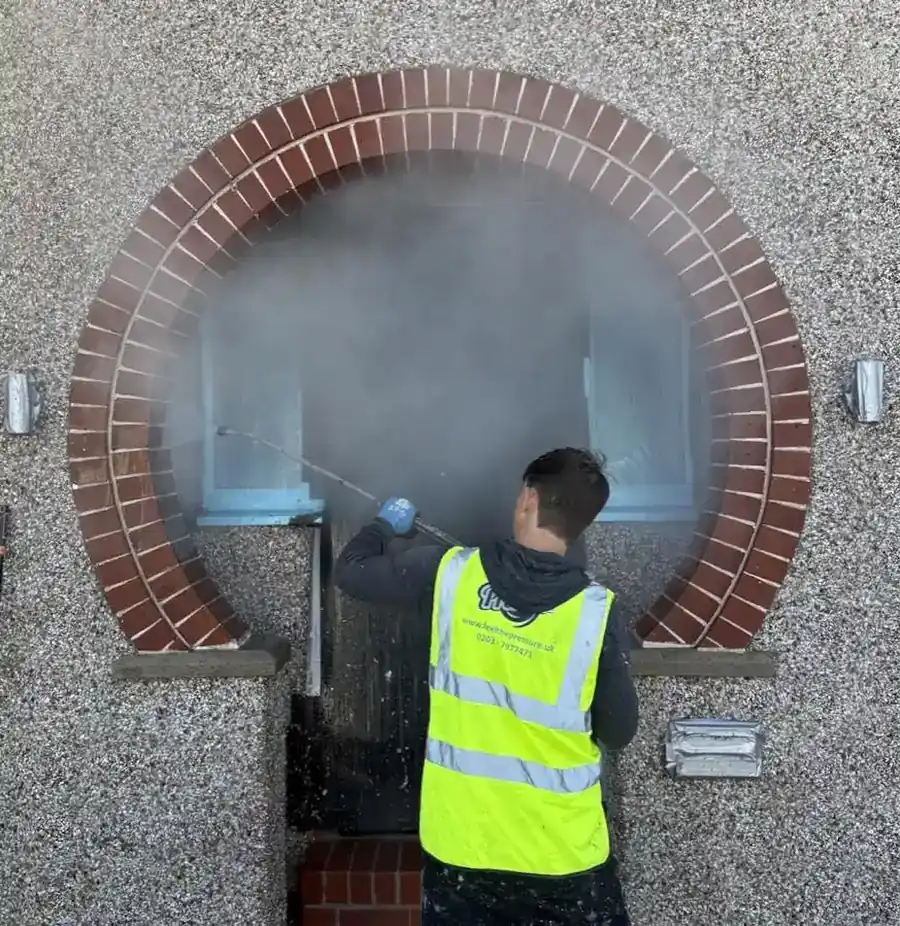

Steam removing paint from a brick arch after professional paint softening

Brick Arch Paint Removal Results

Following the completion of the brick arch paint removal process, the original arched brickwork was fully revealed, with the brick faces clean, intact, and free from surface damage. This project demonstrates that, when the correct method is used, it is possible to remove paint from curved brickwork safely without harming the brick or mortar.

The careful combination of paint softening and controlled steam cleaning allowed the paint to be removed from the brick arch evenly, including curved faces, edges, and mortar joints where paint build-up is often heaviest. This approach is particularly important for homeowners who need paint removed from a brick arch but are concerned about damaging the surface.

Once the paint had been removed from the arched brickwork, the natural colour, texture, and detail of the bricks became visible again. The finished result shows that the best way to remove paint from a brick arch is through a patient, process-led approach — the same principles we use across all professional brick paint removal services.

Importantly, the brickwork was left in sound condition, with no scarring, erosion, or loss of definition. This is a key consideration when removing paint from curved brickwork, especially on older properties where bricks and mortar can be softer and more vulnerable to aggressive methods.

Removing the non-breathable paint from the brick arch has also allowed the masonry to breathe naturally again, helping to reduce the risk of trapped moisture, staining, and long-term deterioration — common issues associated with painted brick arches.


Can Paint Be Safely Removed from All Brick Arches?

Not all brick arches are suitable for paint removal, which is why a proper assessment is always essential before any work begins. When homeowners ask can paint be safely removed from a brick arch?” the answer depends on several factors specific to arched and curved brickwork.

Brick type, age, mortar condition, and the number and type of paint layers all affect whether paint can be removed from curved brickwork without causing damage. Older brick arches often incorporate softer bricks and lime-based mortars, which require a far more controlled approach than flat brick walls.

In some cases, heavily weathered bricks or thick, non-breathable paints may limit how much paint can be safely removed from a brick arch. Curved brickwork also places greater stress on edges and mortar joints, meaning poorly chosen or aggressive methods can quickly lead to surface scarring, uneven results, or loss of detail.

That said, many painted brick arches can be successfully treated when the correct method is used. Careful paint softening followed by controlled steam cleaning makes it possible to remove paint from brick arches safely in a wide range of situations, while preserving the brick faces and mortar joints.

Where there is any uncertainty, a small test area can be carried out first. This shows how the paint responds and allows the condition of the brick arch to be assessed before committing to full brick arch paint removal, giving a clear and honest indication of what result can realistically be achieved.

If you’re unsure whether paint can be safely removed from your brick arch, a proper assessment will give you a clear and honest answer on the options available for your individual brickwork.

Considering Brick Arch Paint Removal?

If you have a painted brick arch and want to understand whether the paint can be safely removed, the first step is always a proper assessment. Brick type, mortar condition, and previous coatings all play a role in what’s achievable, particularly on curved and decorative brickwork.

I’m Frank Bishop, and as the lead specialist at Feel The Pressure UK, I personally carry out all brick paint removal assessments and test patches. This allows the condition of the brickwork to be properly evaluated and ensures the most appropriate method is chosen before any larger work begins.

Where suitable, brick arch paint removal is carried out using a careful, process-led approach that combines paint softening and controlled steam cleaning to protect the brickwork while achieving the best possible result.

If you need professional brick paint removal and would like clear, honest advice on your brick arch, you’re welcome to get in touch. You’ll be dealing directly with me from the initial enquiry through to completion of the work.

FAQ

Brick Arch Paint Removal FAQs-

Is removing paint from a brick arch harder than flat brickwork?-

Yes. Curved brickwork often holds thicker paint around edges and mortar joints, and runoff is harder to control. This means brick arches require a more careful, process-led approach than flat brick walls.

Will removing paint from a brick arch affect the mortar joints?+

When carried out using paint softening and controlled steam cleaning, removing paint from a brick arch can often be done without damaging the mortar joints. Aggressive or inappropriate methods, however, can erode mortar and should be avoided, particularly on older brickwork.

Do I need a test patch before removing paint from a brick arch?+

A test patch isn’t always essential, but it’s strongly recommended where there is any uncertainty about the brick condition or paint type. It allows the response of the paint and the condition of the brickwork to be assessed before committing to full brick arch paint removal.
